Email task
Email task is a system task to use SimWorkflow to send email on your behalf.
There are several tabs available where you can configure an Email task:
-
General tab
-
Input Parameters tab
-
Configuration tab
-
Routing tab
The configuration of the General, Input Parameters, and Routing tabs is similar to that of a user task. We discuss only the Configuration tab here.

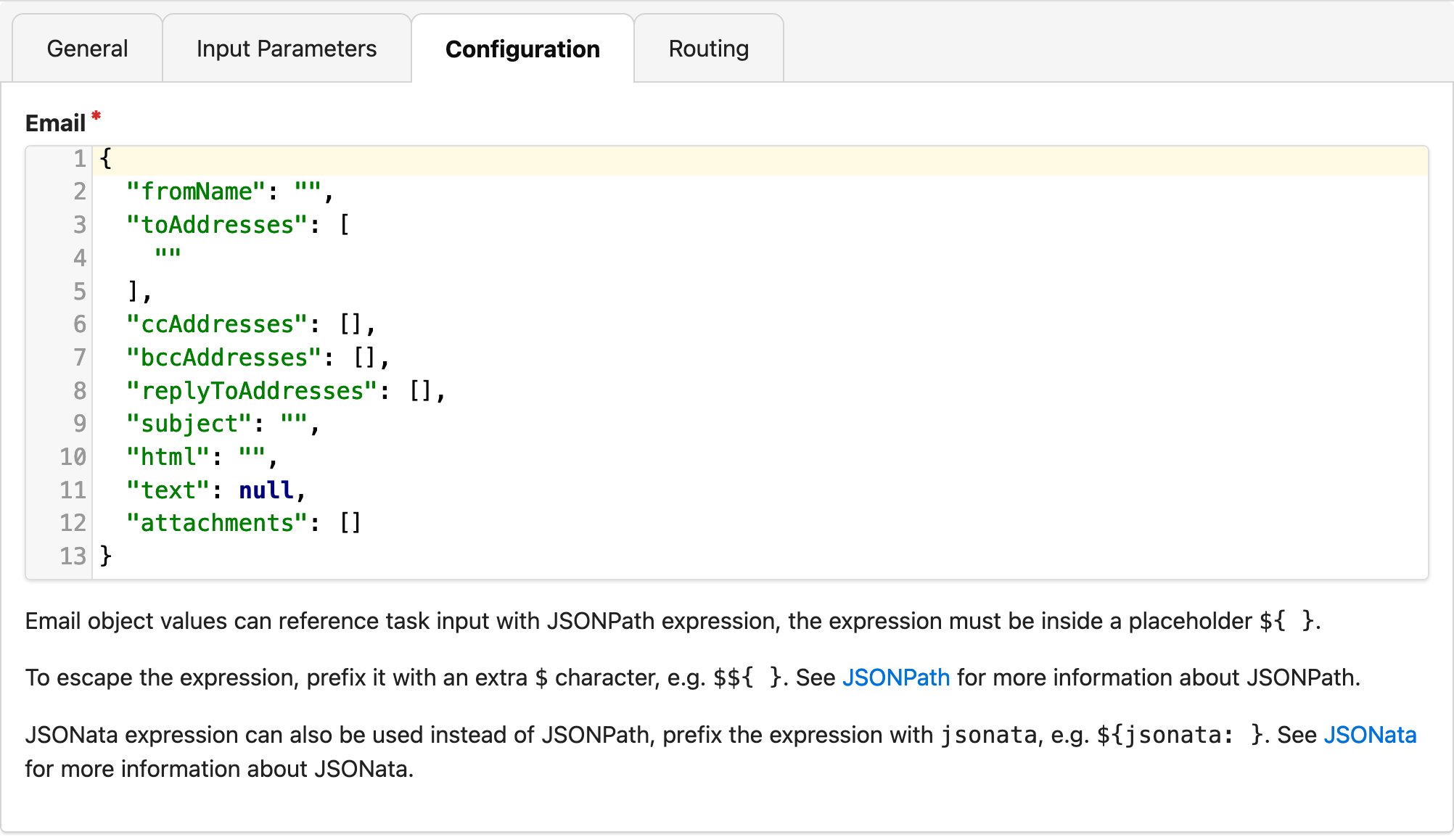

Configuration tab
From the Configuration tab, setup the following fields:
|
Field |
Required |
Description |
|---|---|---|
|
|
Yes |
A configuration for Email represented by a JSON Object. |
Email field top-level fields
|
Field |
Type |
Required |
Description |
|---|---|---|---|
|
|
String |
No |
The display name. This will be what the recipients will see in the email. |
|
|
String |
Yes |
The email subject. |
|
|
String |
Yes |
The email body. Either or both of |
|
|
|||
|
|
JSON Array |
Yes |
The String array of 'To' email addresses. |
|
|
JSON Array |
No |
The String array of 'CC' email addresses. |
|
|
JSON Array |
No |
The String array of 'BCC' email addresses. |
|
|
JSON Array |
No |
The String array of replay-to email addresses. |
|
|
JSON Array |
No |
The String array of workflow task attachment IDs to add to email as attachments. |
Here is an example Email to notify the workflow status:
{
"fromName": "SimWorkflow Automation",
"toAddresses": [
"ben.smith@example.com"
],
"ccAddresses": [],
"bccAddresses": [],
"replyToAddresses": [],
"subject": "Workflow ${workflowDefinitionName} status",
"html": "<p>:exclamation: Workflow <a href=\"https://www.simworkflow.com/workflows/${failureWorkflow['swf:workflowId']}\">${workflowDefinitionName}</a> failed due to <code>${failureWorkflow['swf:cause']}</code></p>",
"text": ":exclamation: Workflow <https://www.simworkflow.com/workflows/${failureWorkflow['swf:workflowId']}|${workflowDefinitionName}> failed due to `${failureWorkflow['swf:cause']}`",
"attachments": []
}
